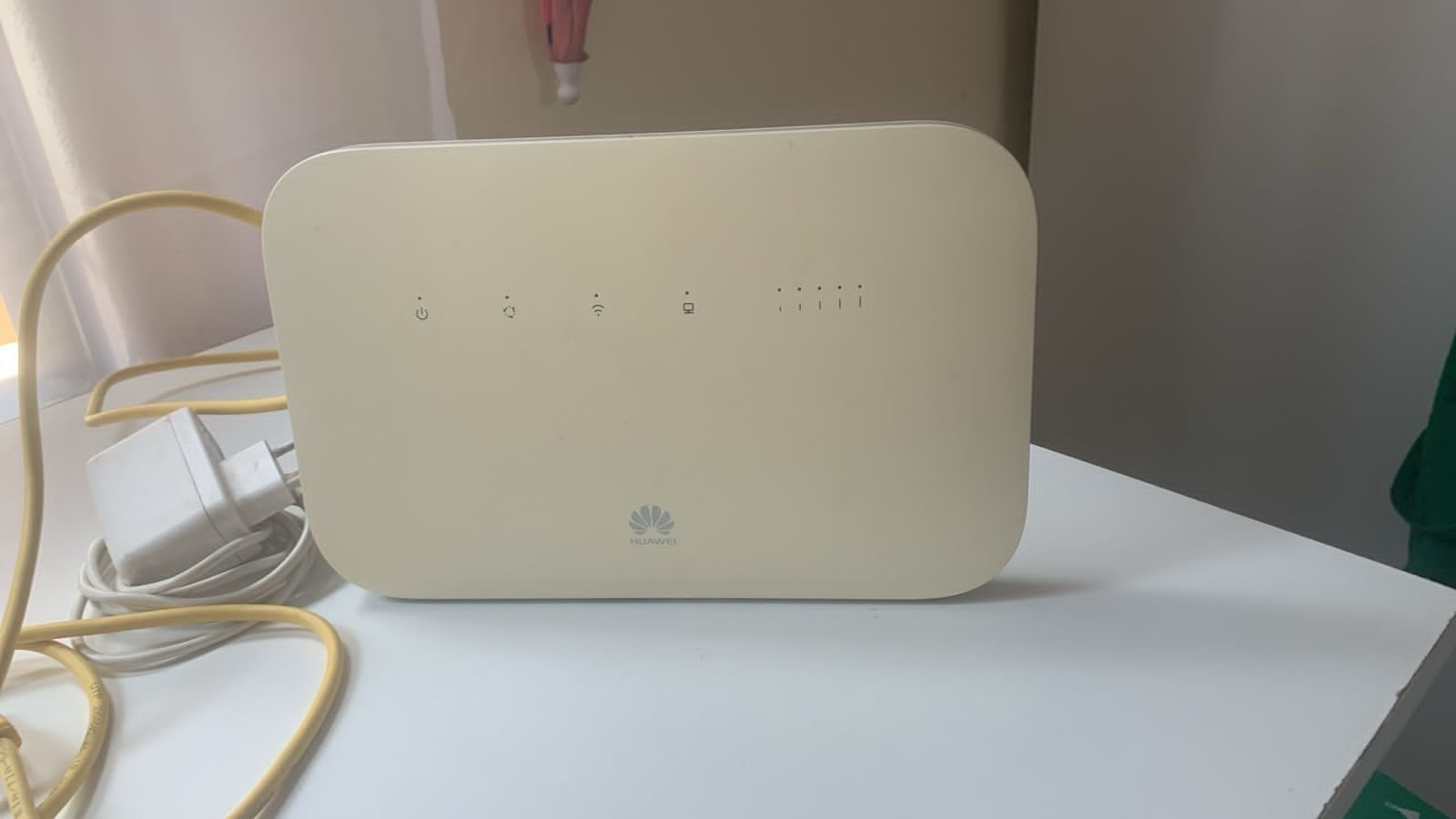

The HUAWEI LTE CPE B612-233 is a Long Term Evolution (LTE) wireless gateway for multiple users in household or small office environments. It enables users to access the Internet.

The B612-233 supports 3GPP Release 11 with LTE
LED Indicators

– One Power indicator

– One LAN/WAN indicator

– One group of signal strength indicators

– One Wi-Fi indicator

Flash slowly: A pairable HiLink device is detected.

Flash quickly: HiLink pairing is in progress.

Off: Wi-Fi is disabled.

NOTE:

The indicator starts to flash slowly only when B612-233 detects a new HiLink device.

HiLink devices include Honor routers, Honor set-up boxes, Honor handsets/ HUAWEI handsets (EMUI 5.0 and later), and more.

– One Internet status indicator

Cyan: LTE network accessed

Blue: UMTS network accessed

Yellow: GSM network accessed

Green: Ethernet network accessed

Red: No SIM card is inserted or detected, or the SIM card has insufficient balance
Buttons

– One Power ON/OFF switch

– One WPS button

The Wi-Fi indicator flashes slowly when the router detects a HiLink device. Press the WPS button to connect the HiLink device to the router’s Wi-Fi.

When the Wi-Fi indicator is steady on, press the WPS button to enable WPS.

– One Reset button
Web browser

– Microsoft Internet Explorer 8.0 with latest updates.

– FireFox 49.0 with latest updates.

– All major versions of Chrome in the last year (53.0 with latest updates).

– Safari 10.0 with latest updates (MAC OS).
What’s in the box

1 x Router

1 x Quick Start Guide

1 x Cable
